ZTelec‘s high-quality products provide users with many economic, environmental and safety benefits, including reducing transformer weight, reducing size, reducing the use of fluids such as transformer oil, improving safety, reducing flammability, increasi

ZTelec‘s high-quality products provide users with many economic, environmental and safety benefits, including reducing transformer weight, reducing size, reducing the use of fluids such as transformer oil, improving safety, reducing flammability, increasing transformer capacity and reducing energy losses. The following high-quality products can be applied to liquid-immersed transformers:

In oil-immersed transformers, the main role of insulation materials is to ensure electrical isolation, thermal management and mechanical support.The following high-quality products can be applied to oil-immersed transformers:

Insulating Material

Application Location

Properties

DDP(Diamond Dotted Pressboard)

Winding insulation, interlayer insulation, end support

High mechanical strength, excellent insulation, oil resistance, heat resistance

Electrical Pressboard

Winding insulation, interlayer insulation, end support

High mechanical strength, excellent insulation, oil resistance, heat resistance

Oil Duct Strip

Oil duct insulation

Good insulation, oil resistance, heat resistance, allows oil flow

Electrical Polyester Shrinkable Tape

Winding binding, insulation repair

Good insulation, heat resistance, shrinkability, high mechanical strength

Electrical White Cloth Tape

Winding binding, insulation repair

Good insulation, heat resistance, high mechanical strength

Unidirectional Binding Tape

Winding binding

High mechanical strength, good insulation, heat resistance

Crepe Paper Tube

Winding insulation, lead insulation

Good insulation, oil resistance, heat resistance, flexibility

Cable Paper (Insulating Kraft Paper)

Winding insulation, interlayer insulation

Good insulation, oil resistance, heat resistance, high mechanical strength

Crepe Paper

Winding insulation, interlayer insulation

Good insulation, oil resistance, heat resistance, flexibility

Phenolic Paper Tube

Lead insulation, support structures

Good insulation, oil resistance, heat resistance, high mechanical strength

Electrician Laminated Wood

Support structures, insulation blocks

High mechanical strength, good insulation, oil resistance, heat resistance



leave message to us!

read moreyou may like
read morecase
read morevideos

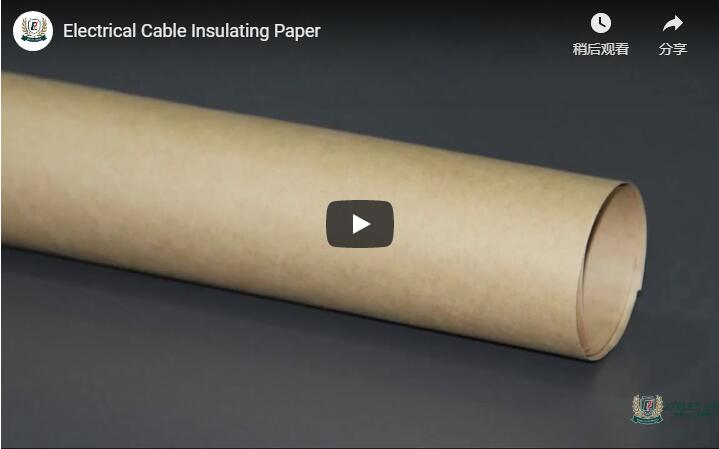

Electrical Cable Insulating Paper
