Flexible Insulation Paper

DM-DMD-DMDM Insulating paper

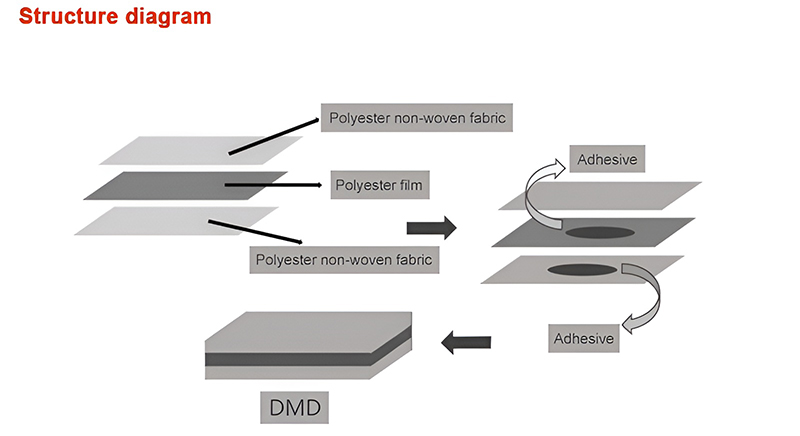

DMD is a composite product composed of two layers of polyester fiber non-woven fabric bonded with a layer of polyester film through a heating adhesive. Widely used in the motor slot, gasket insulation.

Product Parameters:

Type:Insulation composite material, Insulation Materials

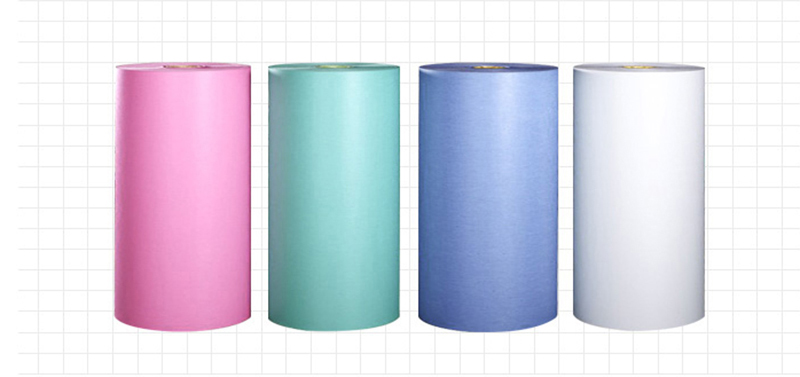

Color:Red /White blue/Pink or customized as per customer's requirements

Thickness:0.18/0.20/0.25/0.30/0.35/0.40(mm)

Width: 960/1000(mm)(Customized Size)

Material:polyester fiber non-woven cloth, polyester filmpolyester film

Heat Resisting Grade:6641 F(155°C)  6630 B(130°C)

Product description:

This product is a kind of composite product that is made of two layersof polyester fiber non-woven cloth adhered to one layer of polyester film in between byheating adhesive. lt is widely used for slot and gasket insulation of motor.

and layer insulation of transformer.

Features:

♦ Super dielectricproperty

♦ Reliable heatresistance

♦ High mechanicalstrength

♦ Good impregnating

♦ performance

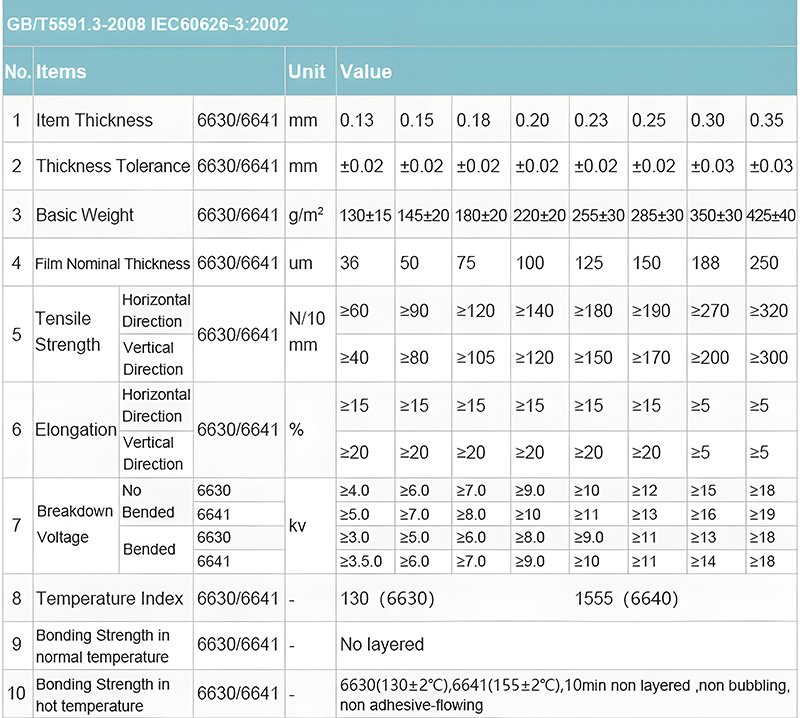

Property Parameter of DM-DMD-DMDM Insulating Paper

Note.The data in the above table only represents typical or average data, just for reference in practical application.

It does not bear any responsibility for the use of the product or related leaal liability.



Why choose our DMD?

• Good mechanical strength and dielectric properties

• We have several imported equipments to meet most customer needs

• Higher heat resistance (B and F grades)

Workshop and Packaging

we are factory direct sales, no middlemen make the difference, product ship directly fromour factory, saving costs and time from the source.Welcome to contact with us.Let us do better and better.
