Electrical Insulation Sheet

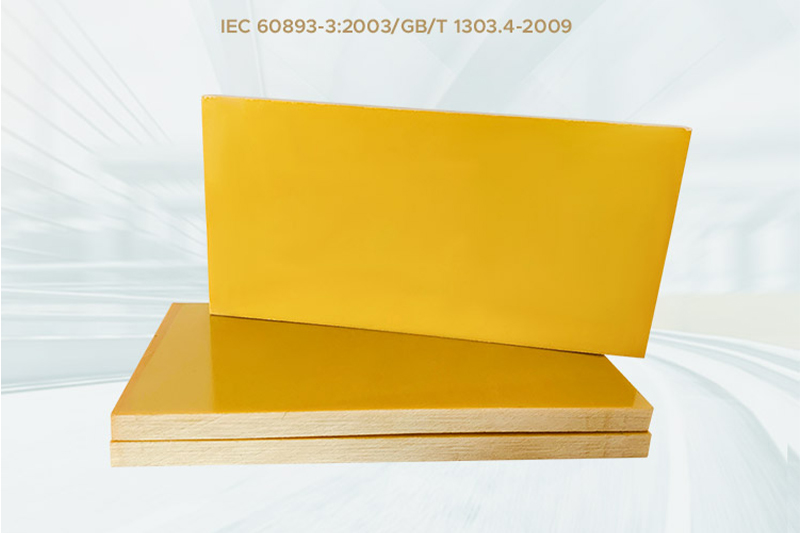

G-11 Epoxy Resin Fiberglass Sheet

NEMA G-11/EPGC 203/HGW2372.4/EP3 High Temperature Epoxy Resin Fiberglass Board

3240 Epoxy Sheet Product introduction

Product Parameters:

Color: Green/Water Green/White/Yellow

Thickness :0.1mm-100mm

Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 mm(support customize)

Heat resistance rating: Class F(155 ° C)

Custom-Service: can CNC machine according to your drawing

Free Samples!

Factory Wholesale Price

Product Description:

G11 high temperature epoxy resin fiberglass board is created by compressing fiberglass cloth, soaked in high temperature resistant epoxy resin under heat with excellent mechanical and dielectric properties, good mechanical performance at high temperature and high humidity condition, and good processability.

Advantages:

1.G11 material excels in moisture resistance and heat resistance.

2.It maintains strong mechanical properties even at high temperatures.

3.It exhibits excellent electrical performance in both dry and wet conditions.

Epoxy Resin Fiberglass Sheet Parameter:

Application of Nema G11 High Temperature Epoxy Resin Fiberglass Board

It can be used as insulating structural parts with heat resistance for electrical equipments such as circuit breakers, switch gear, transformers, DC motors, AC contactors, explosion-proof electrical appliances, electric furnace, electric melting furnace, etc.

It can also be used for making structural support parts of switch and transformer, bus clamp plate, signal plate, partitions and lining plates of various switch gears, terminal plate, interphase insulation, bottom baffle, contact support parts, movable cover, slot wedge stator, fixed gasket, thin gasket, carbon brush, etc.

Why Choose ZTelec Group’s Nema G11 Epoxy Fiberglass Cloth Laminated Board?

1、 Automatic Coating: Glue evenly, strictly control PP sheet move.

2、 Fully automatic special equipment: Without one machine multi-purpose, which can guarantee product quality stability.

3、 Quality testing: Strict factory inspection, total quality management TQM

4、 Processing Service: According to your requirements, we process and customize on time and quality

5、UL,SGS and ROSH certificates are complete, and sample testing can be provided



ZTelec Group’s Nema G11 Sheet VS Other manufacture’s G11 Sheet
