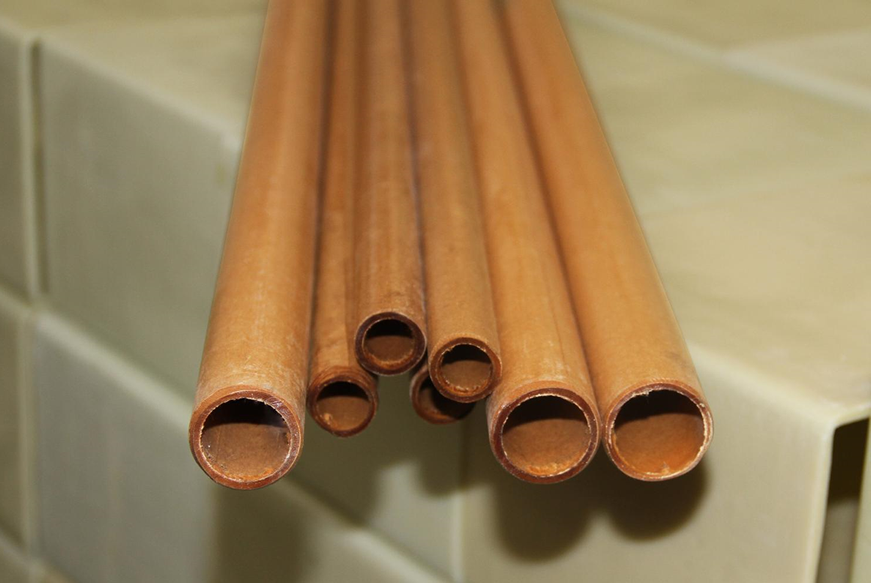

Phenolic paper tubes, also known as phenolic resin impregnated paper tubes, are a type of composite material used in various industrial and electrical applications. These tubes are made by impregnating paper (typically kraft paper) with phenolic resin and then curing it under heat and pressure to form a rigid, durable, and lightweight structure.
Key Features of Phenolic Paper Tubes:
High Strength and Durability: Phenolic resin provides the tube with excellent mechanical strength and rigidity, making it suitable for heavy-duty applications.
Electrical Insulation: Phenolic paper tubes are often used in electrical applications because of their good insulating properties. They have a high dielectric strength, which makes them resistant to electrical currents and ideal for use in transformers, motors, and other electrical components.
Heat Resistance: The phenolic resin used in these tubes gives them good thermal stability, allowing them to withstand high temperatures without losing their mechanical or insulating properties.
Chemical Resistance: Phenolic paper tubes are resistant to many chemicals, including oils, solvents, and acids, which makes them suitable for use in harsh environments.
Lightweight: Despite their strength, phenolic paper tubes are relatively lightweight, which can be advantageous in many industrial and engineering applications.
Phenolic paper tube applications:
Electrical and Electronic Components: Due to their excellent insulating properties, phenolic paper tubes are commonly used as insulating sleeves, bushings, and spacers in electrical motors, transformers, and other electrical equipment.
Mechanical Components: They are used in various mechanical systems where lightweight, durable, and heat-resistant materials are required, such as in the aerospace and automotive industries.
Bushings and Bearings: Some phenolic paper tubes are used as bushings or bearings in machinery due to their self-lubricating properties, which reduce friction and wear.
Composite Fabrication: They can also be used as cores in the fabrication of composite materials, providing structure and strength to the finished product.

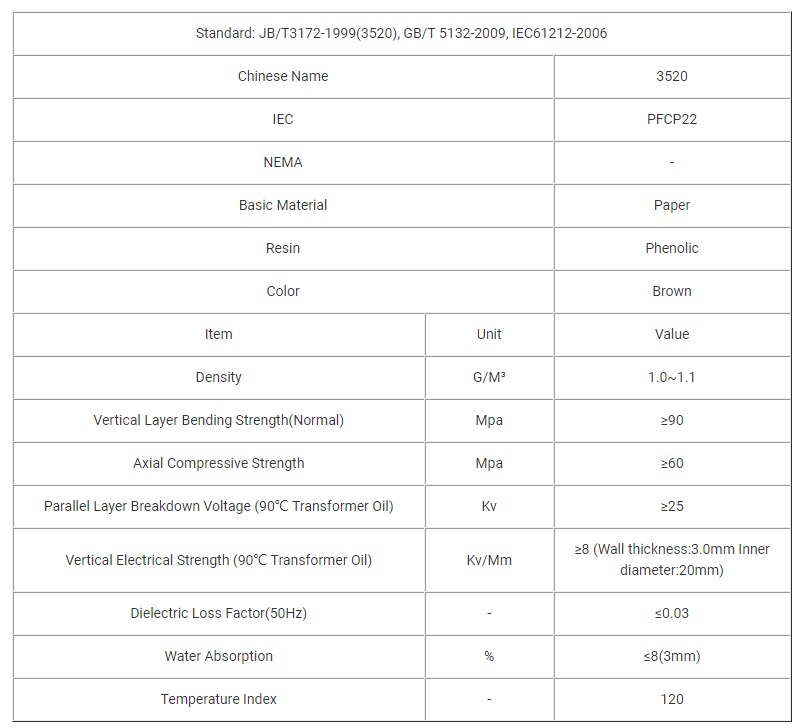

Phenolic paper tubes date sheet
In summary, phenolic paper tubes are widely used for their combination of mechanical strength, heat resistance, electrical insulation, and chemical resistance. They are versatile and find applications across various industries, especially where electrical insulation and lightweight materials are important.
